Test Pack Equipment

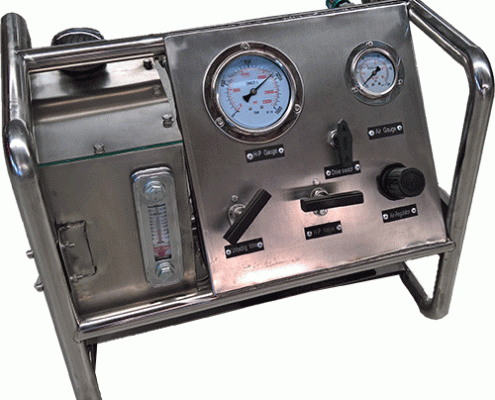

ProPak pressure test pack equipment:
Test Packs, also referred to as Testpaks, cover an enormous range of testing equipment and types. However, when relating to Air Driven Liquid Pumps and Gas Boosters, the term usually refers to a packaged self-contained system that when connected to a separate air supply can carry out various pressure tests on whatever component requires such testing. These pressure testing systems are a major application for air driven pumps and boosters and often form part of a hydrostatic test system.
Features
- Correct ProTech air driven product for your need
- An air pressure regulator; an air pressure gauge and an on/off speed valve
- An outlet pressure gauge + stainless steel liquid tank
- A return to tank valve and discharge outlet connection
- A stainless steel rollbar frame
- Stainless steel pipework
Upgrades available for specific requirements (examples)
- Certified pressure gauges;
- Electronically captured results for certified test reports;
- Remote / electronic setting of required test pressures;
- Automatic jigs for quick install/removal of testing item;
- Safety valves and flexiglass mechanical barriers;
| Image | Product | Code | Price | |
|---|---|---|---|---|
|
PP1-GM115 12,035 psi | PP1-GM15 | CAD3,370.00 each | Product details |
|
PP5-GB4 481.4 psi | PP5-GB4 | CAD13,307.80 each | Product details |
